Automatic Horizontal Cartoning Machine For Sachet
Home > Products > Horizontal Packing Machine > Automatic Horizontal Cartoning Machine For Sachet

Automatic Horizontal Cartoning Machine For Sachet


  • Automatic Horizontal Cartoning Machine For Sachet

Automatic Horizontal Cartoning Machine For Sachet

    Min. Order: 1 Set/Sets
    Packaging: wooden case
    Brand: Durzerd
    Transportation: Ocean,Land
    Place of Origin: CHINA
    Port: SHANGHAI PORT

Product Description

Brief Introduction:

The materials can be bottled or bagged. Therefore, the cartoning packaging machines can be divided into two types. Sachets packing machine or bottle filling machine is required. This carton box sealing machine is the latest model developed by our company. This machine is suitable sachets into carton. On line product feeding and detecting, leaflet fold (l-4 folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Features:

1. International famous brand of electrical component such as PLC touch screen, frequency inverter, etc.

2. Adopt human-machine operation system.

3. Automatically stop when machine is overload.

4. Automatically reject lacking of package product and leaflet.

5. Automatically display trouble, Alarm and count finished products.

6. Stable performance, operation is easy.

APPLICATION:

Carton box packing machine is suitable for sachet, condom, adhesive bandage, soft ALU strip, plaster, coffee bag, face mask and similar products. So this machine can also be designed as sticks cartoning machine and Sachets cartoning machine.

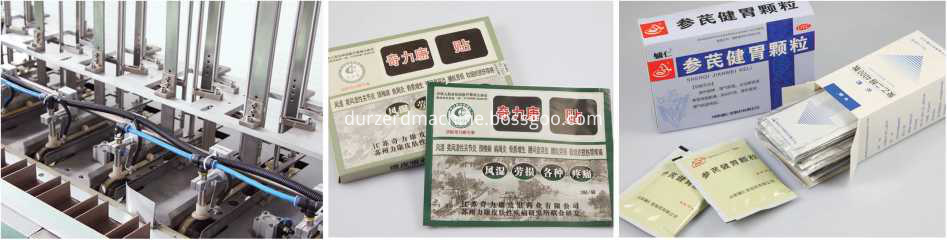

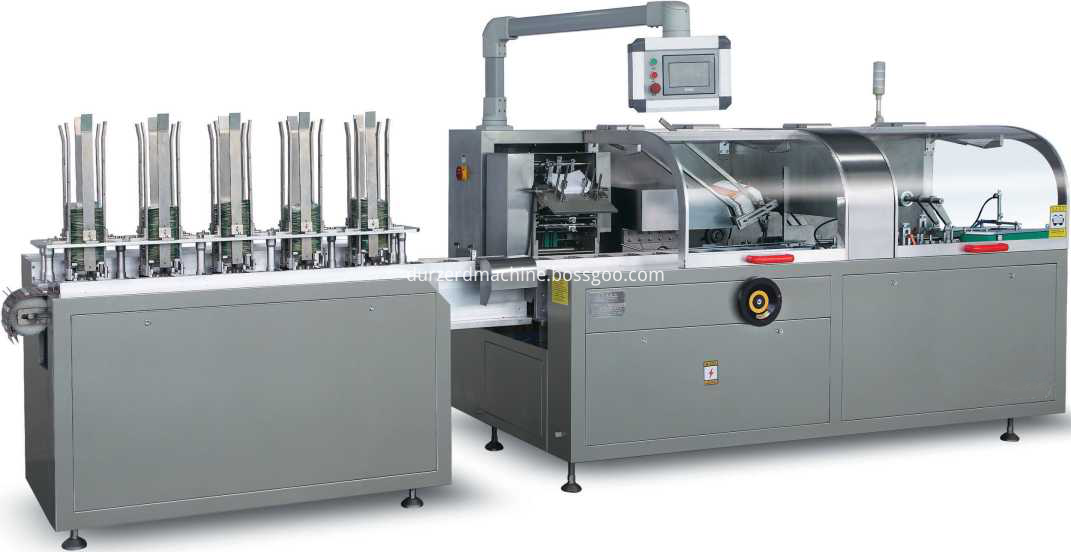

Box Packing Machine Automatic Detailed description

cartoning machine

box sealing machine

Technical Parameters

Encasing speed

30-120(Cartons/min)

Sachet quantity

1-12 bag (Base on sachet or pouch size)

Carton

Quality requirement

250-350g/m2 Base on carton size

Dimension range (L x W x H)

(70-180)mm x (35-85)mm x (14-50)mm

Leaflet

Quality requirement

60-70g/m2

Unfolded leaflet specification

(80-250)mm x (90-170)mm

Fold range

1-4Fold

Compressed air

Working pressure

N0.6Mpa

Air consumption

260-300L/min

Power supply

220V 50Hz

Motor power

2.2kw

Machine dimension (L x W x H)

4200mm x 1050mm x 1600mm

Machine weight

1600kg
